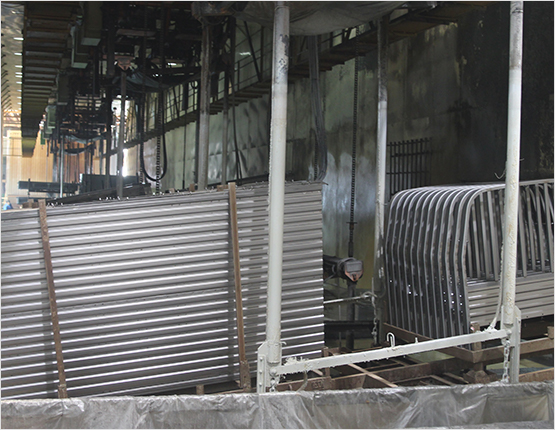

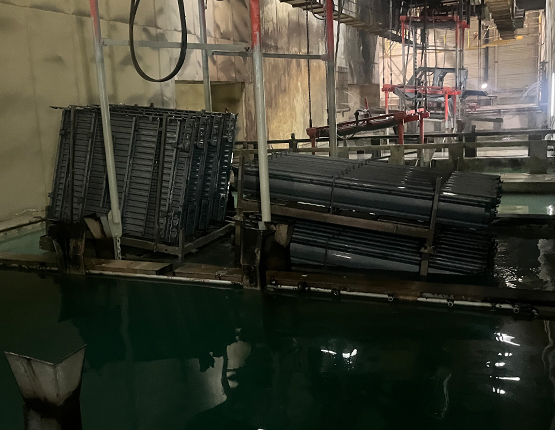

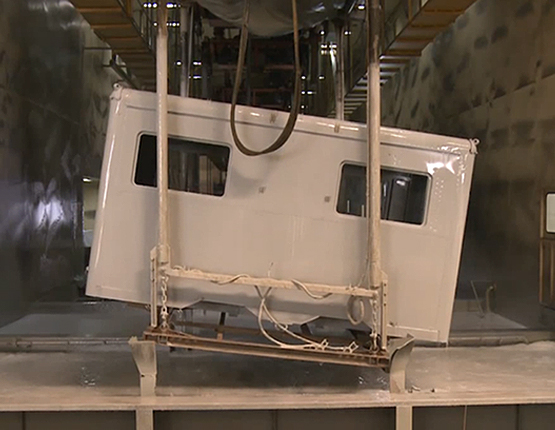

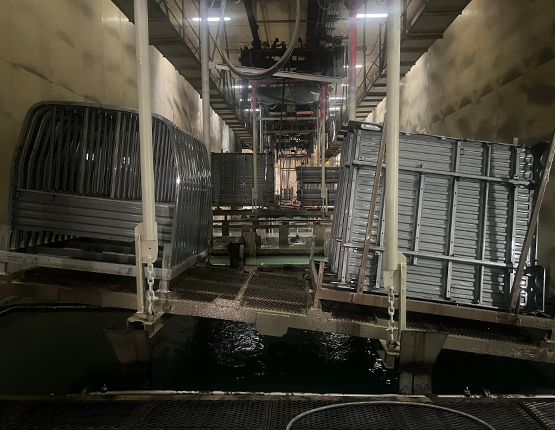

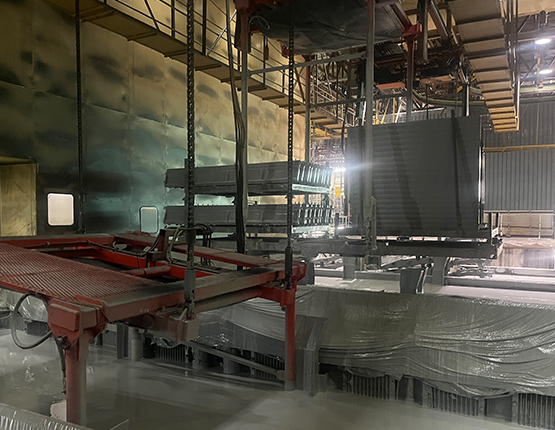

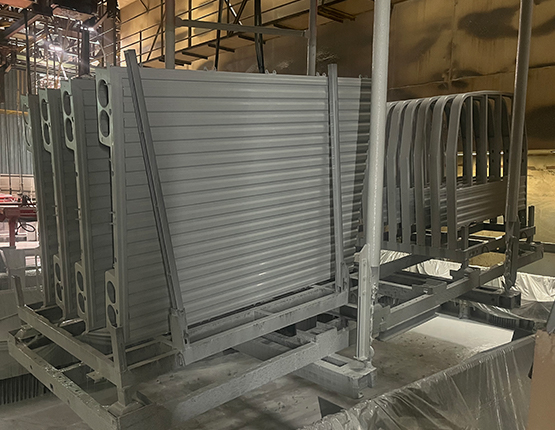

ED coating line is a process in which forming a coating film on the surface by immersing the workpiece in a water-based resin paint solution for electro-deposition and applying an electric current.
-
We have raised the performance of anti-corrosion by up to 4 times.
-
Capacity : Length 7m, Width 2.5m, Height 2.2m
-
Uniform coating thickness(20㎛) and glossy surface.
-
Perfect anti-corrosion performance in hidden, jointed, welded area and corners

Electric current flows between the metal surface (+) and the coat (-) so that the coat is bound to the surface
Prevents humidity from touching the surface and helps the coats adhere.

These are applied to the surface of for electro-deposition coating and prevent the rust.
It helps the top coat to be well stuck to the electro-deposition coat. It is a coat which is critical for the quality of coating.

This creates the color, smoothness and gloss of the vehicle.
2 or 3 coats are applied to the high class vehicles to create an even better quality coating.
